Snowman Kit Build Instructions

Snowman Kit Product Page

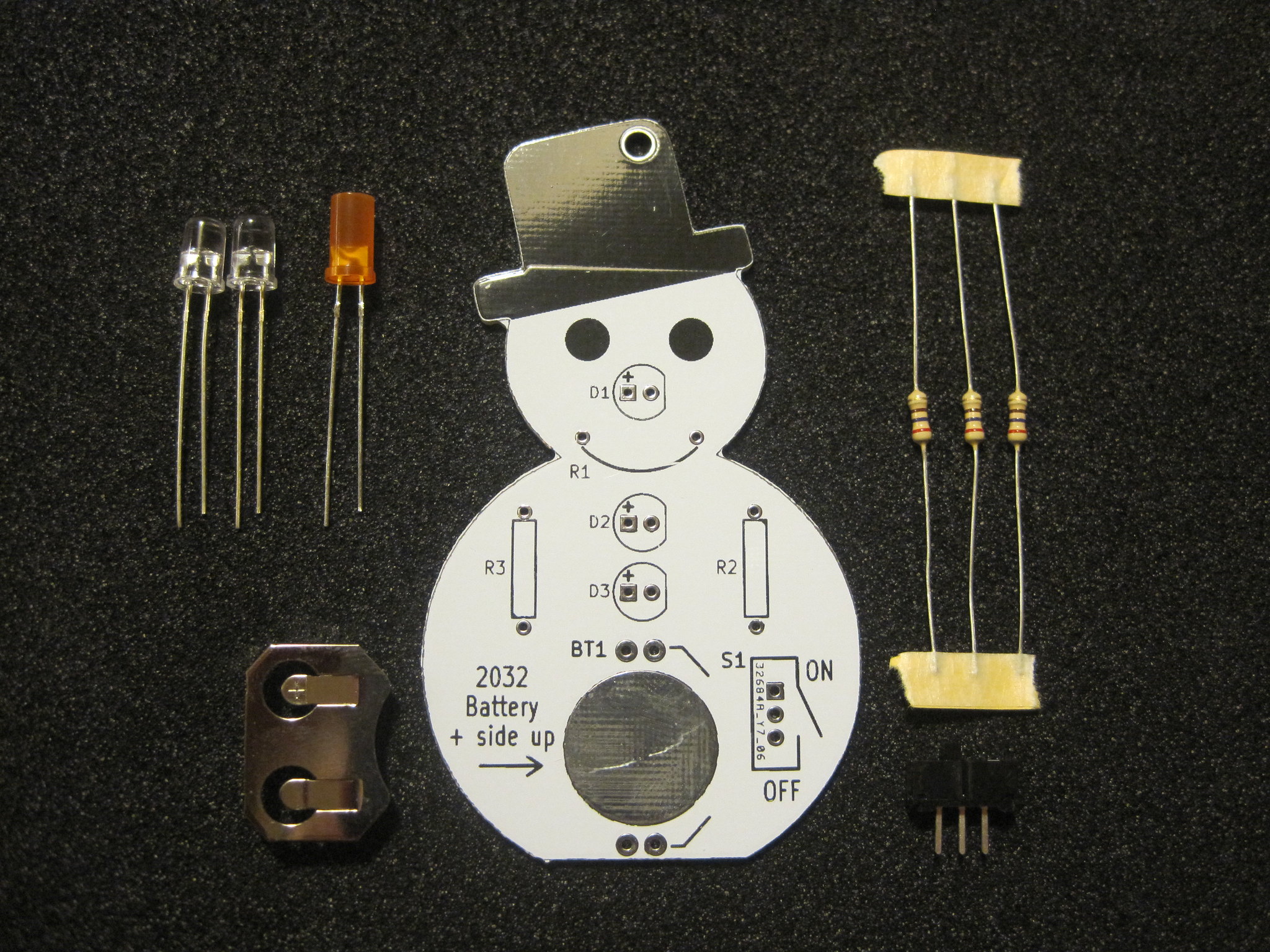

Step 1: Check the parts included with the kit.

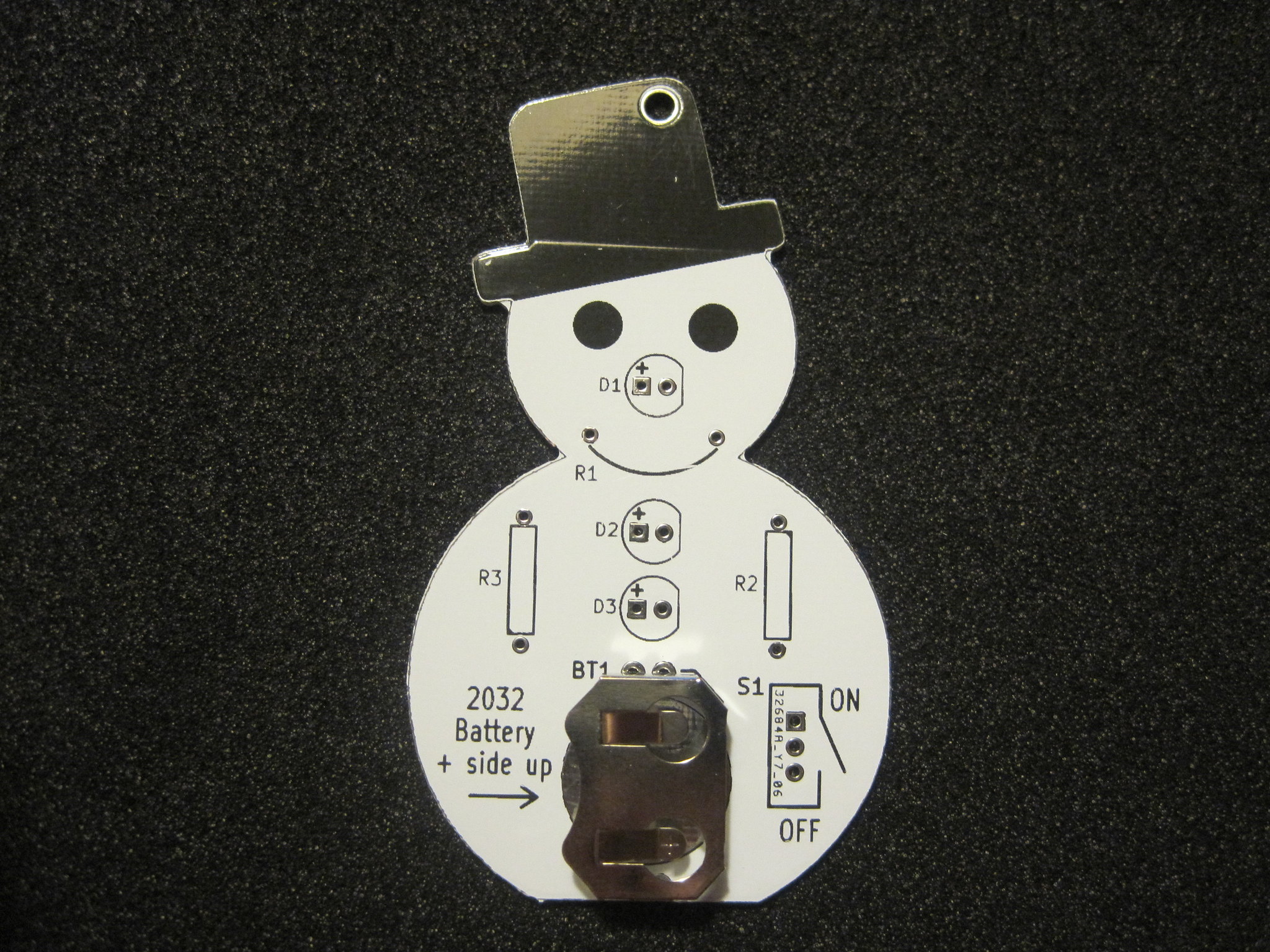

Step 2: Install the battery holder with the opening to the left.

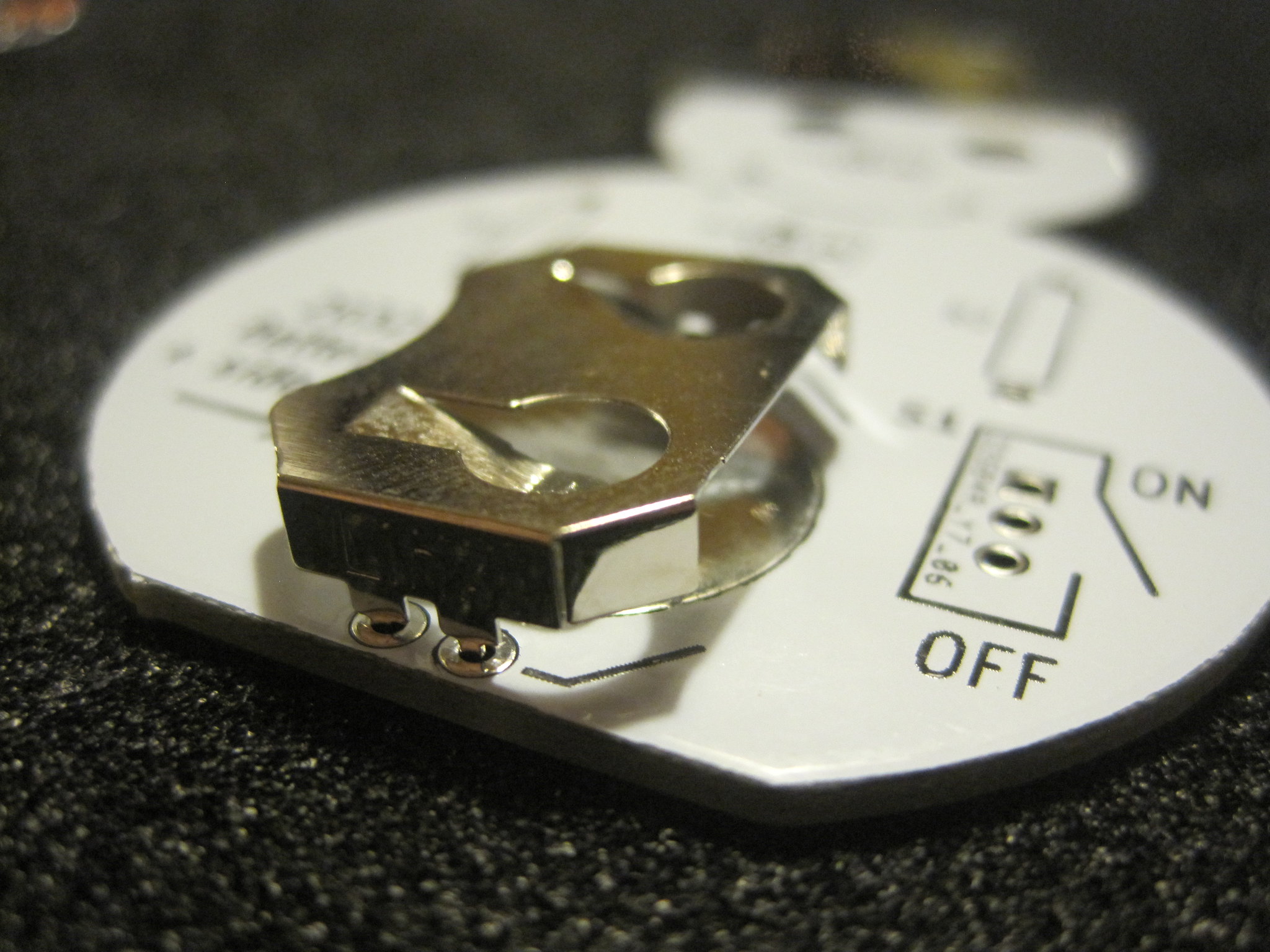

Step 3: Check battery holder orientation.

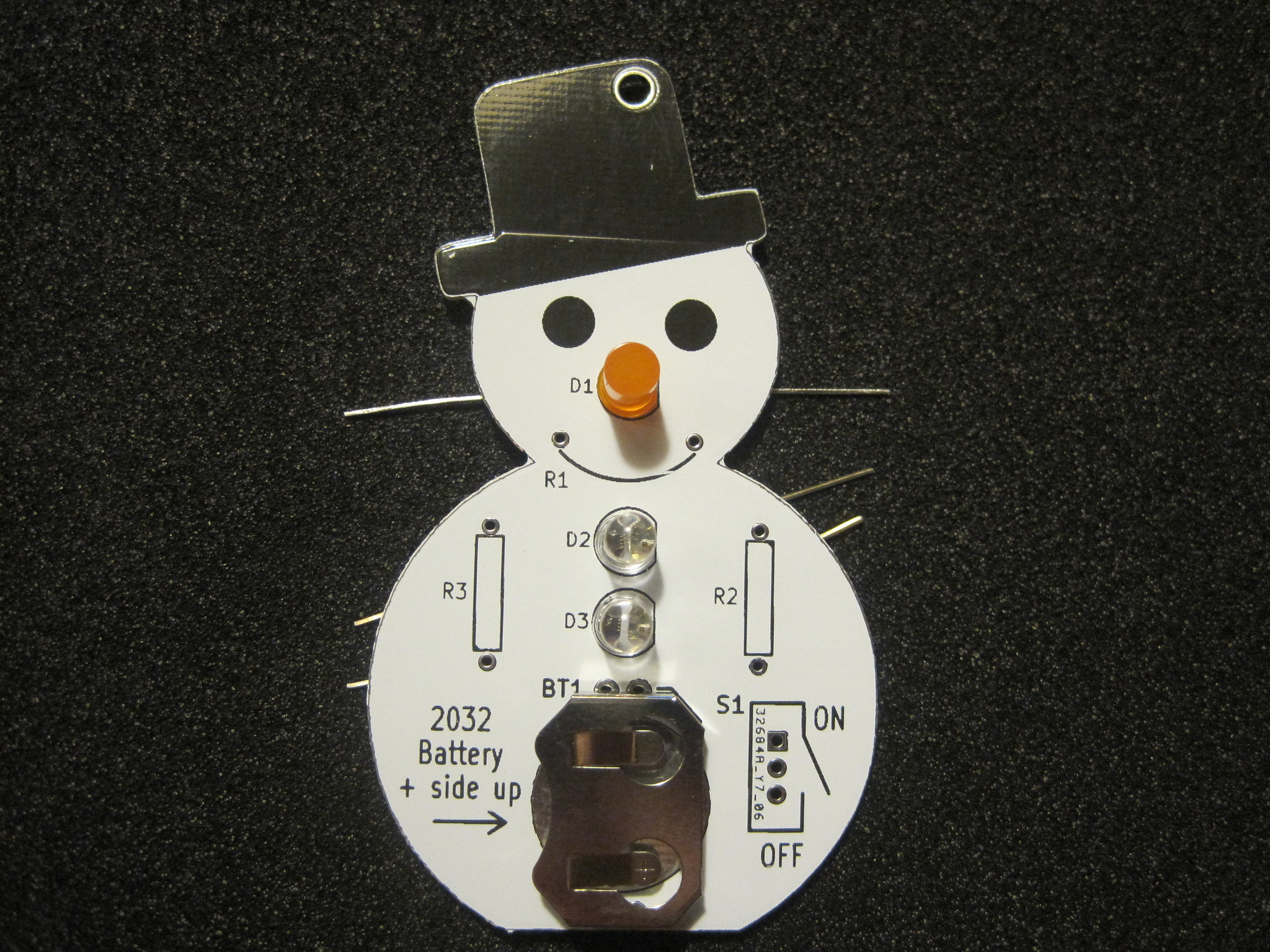

Step 4: Install LEDs D1, D2 and D3 with the longer lead to the positive (+) side.

Step 5: Fold the leads of the parts over as you install them to hold them in place.

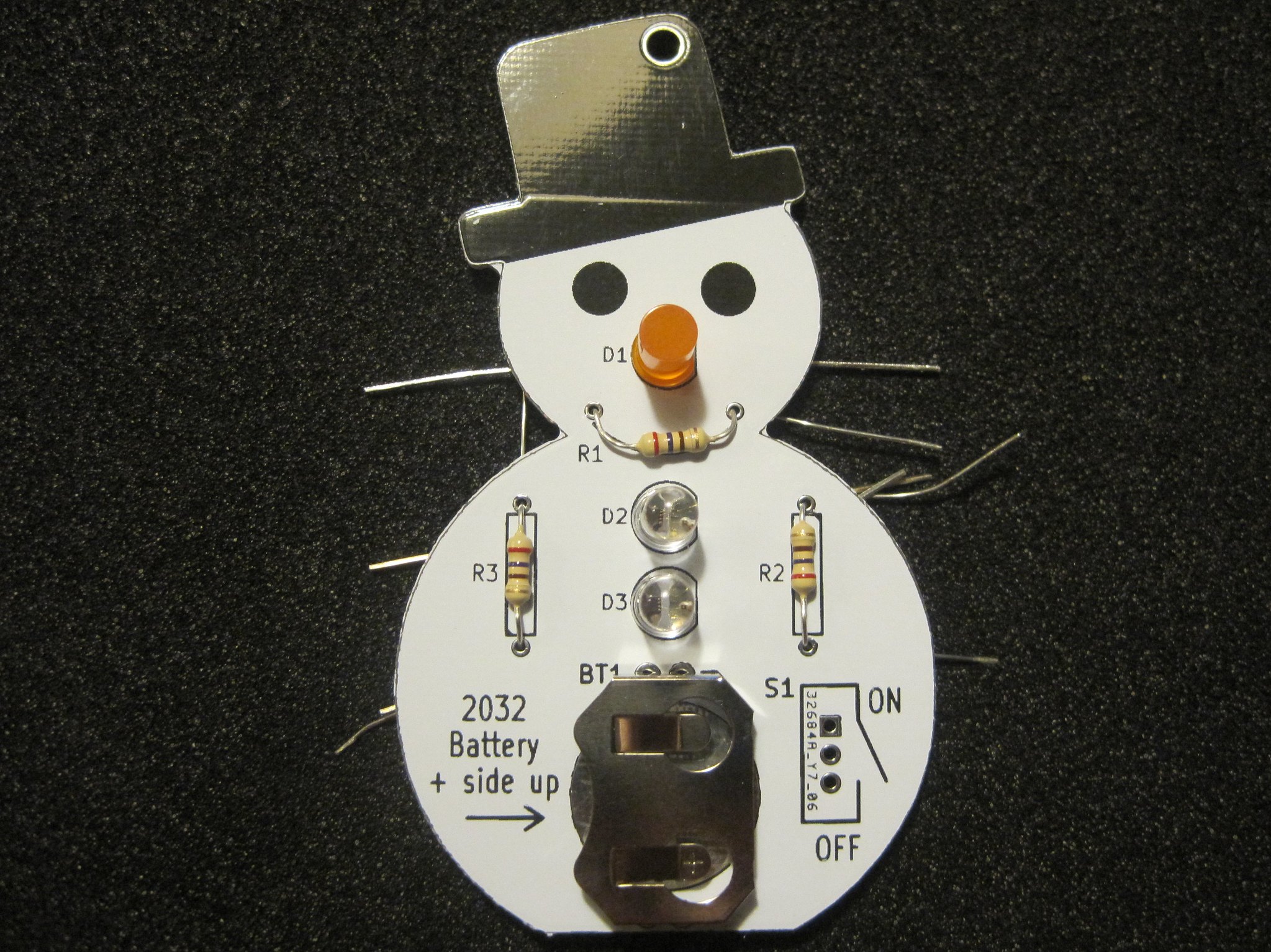

Step 6: Install the resistors R1, R2 and R3.

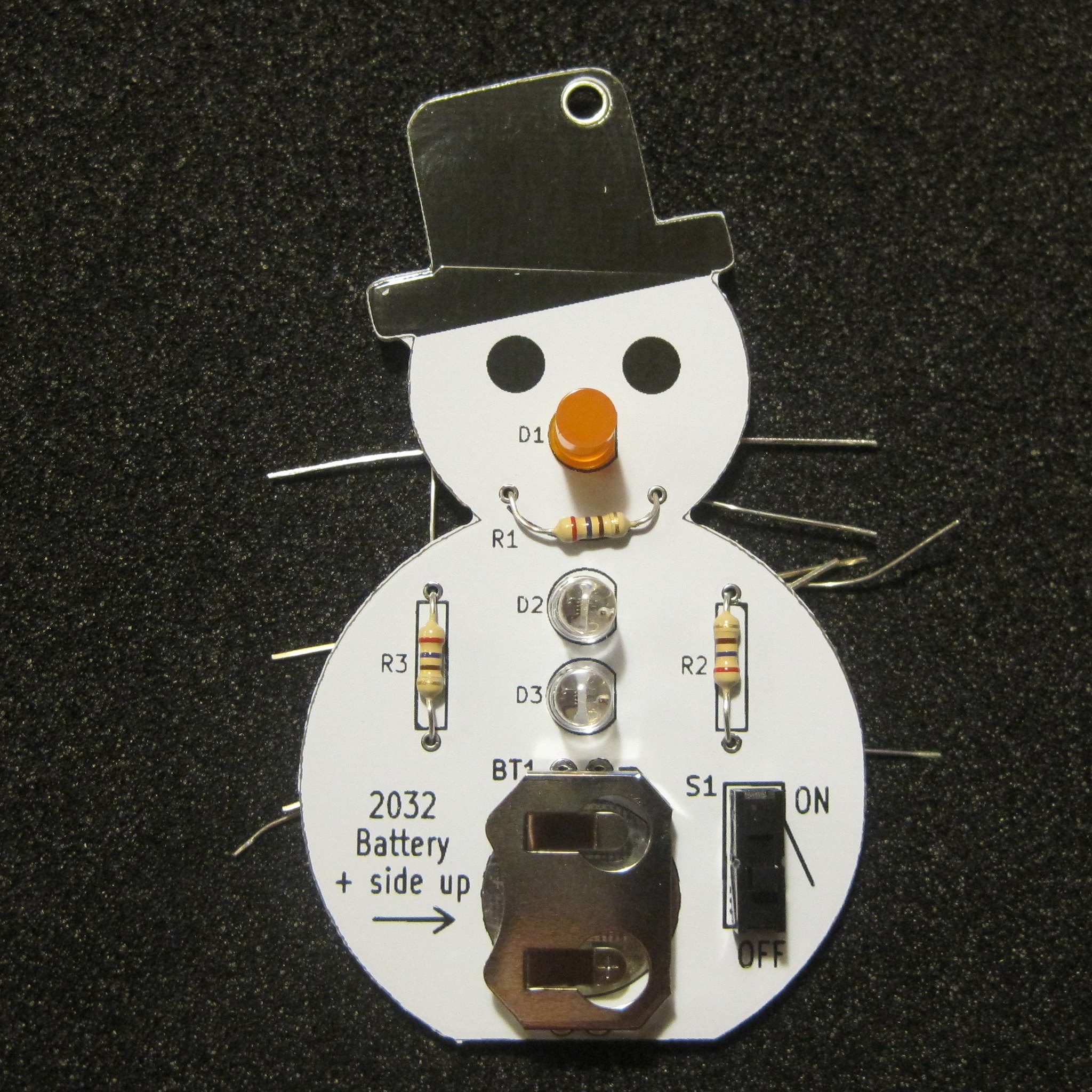

Step 7: Install the switch S1.

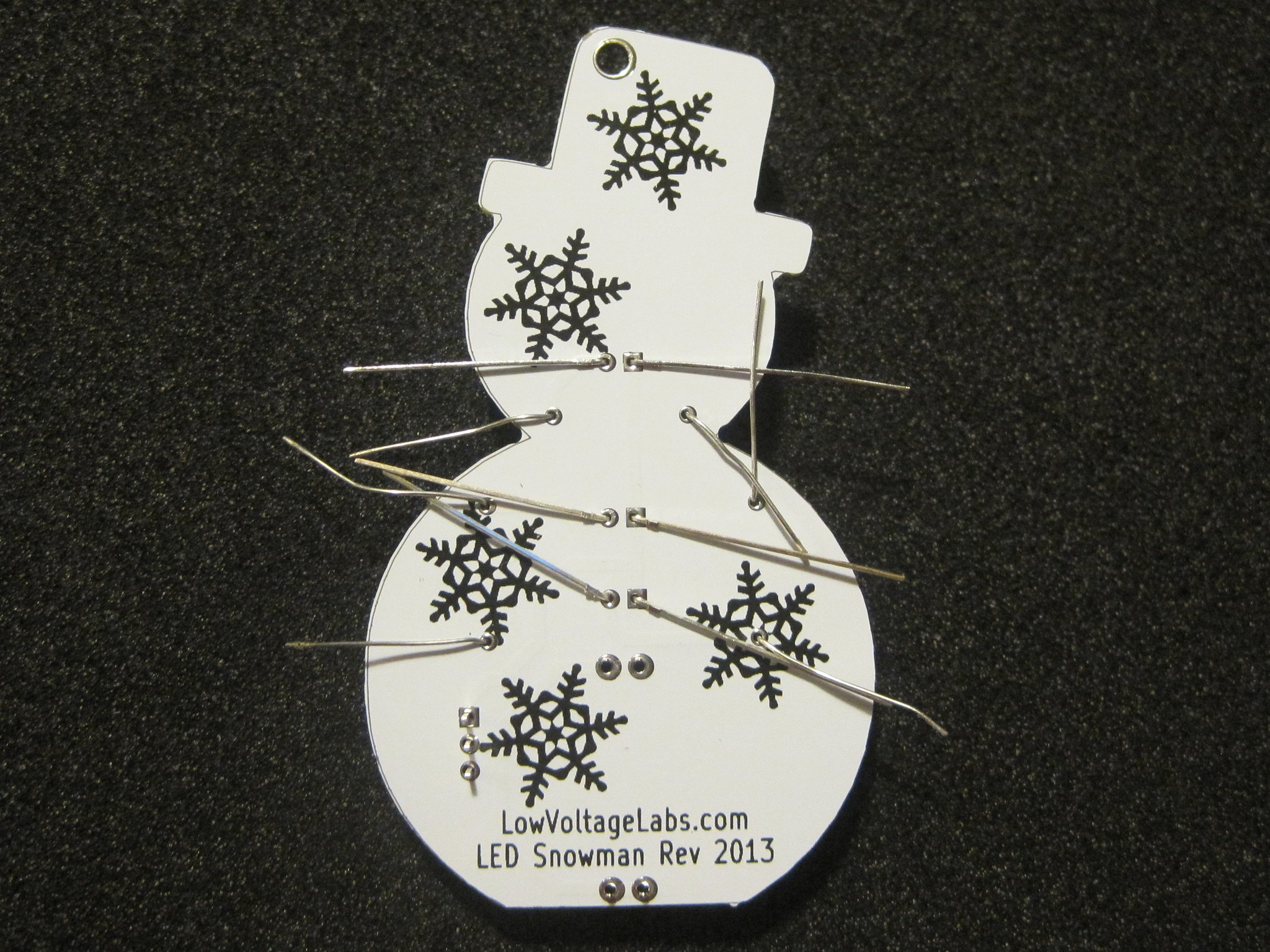

Step 8: Flip over the PCB and solder the parts.

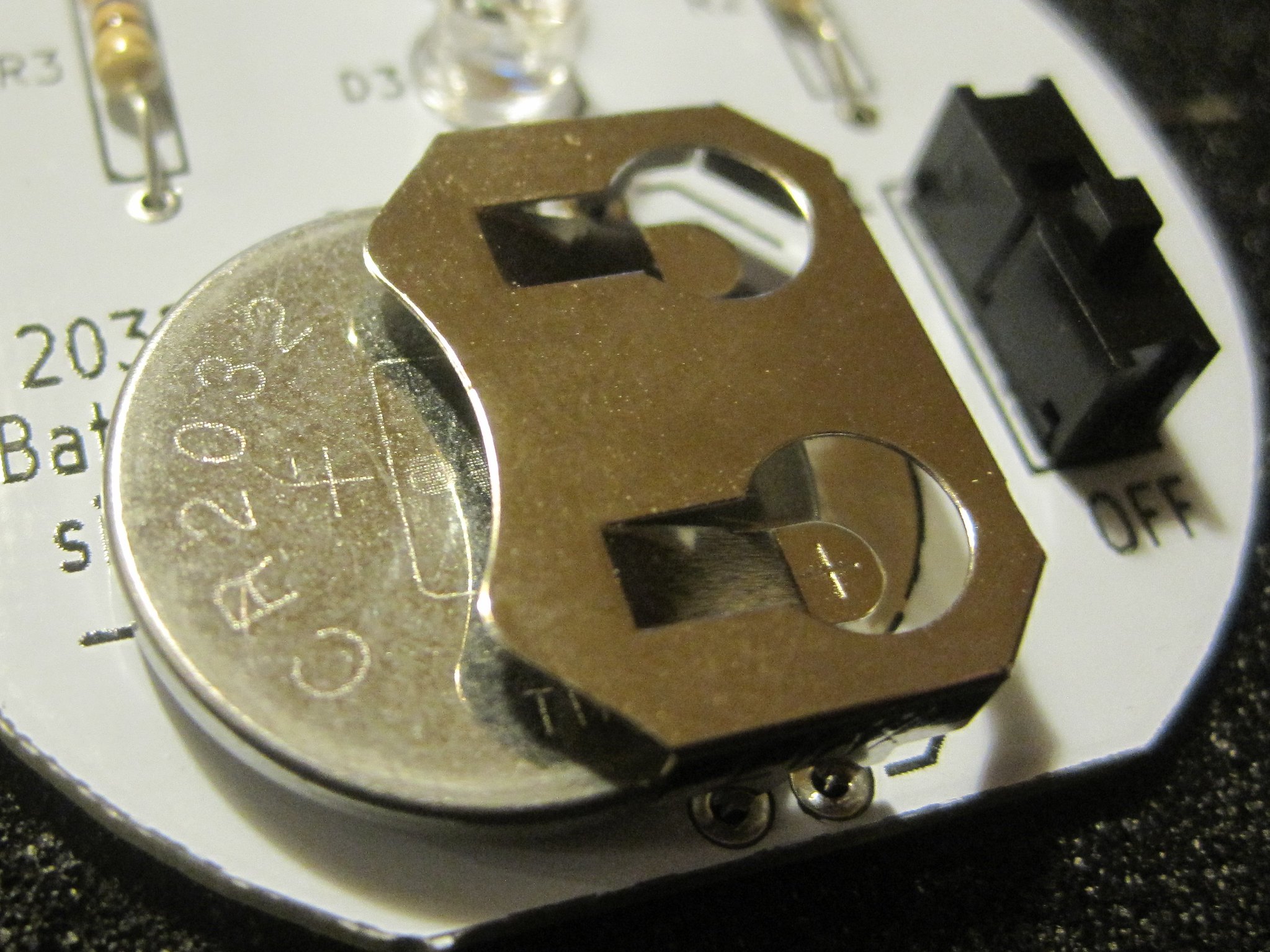

Step 9: Install a 2032 battery with the positive side up.

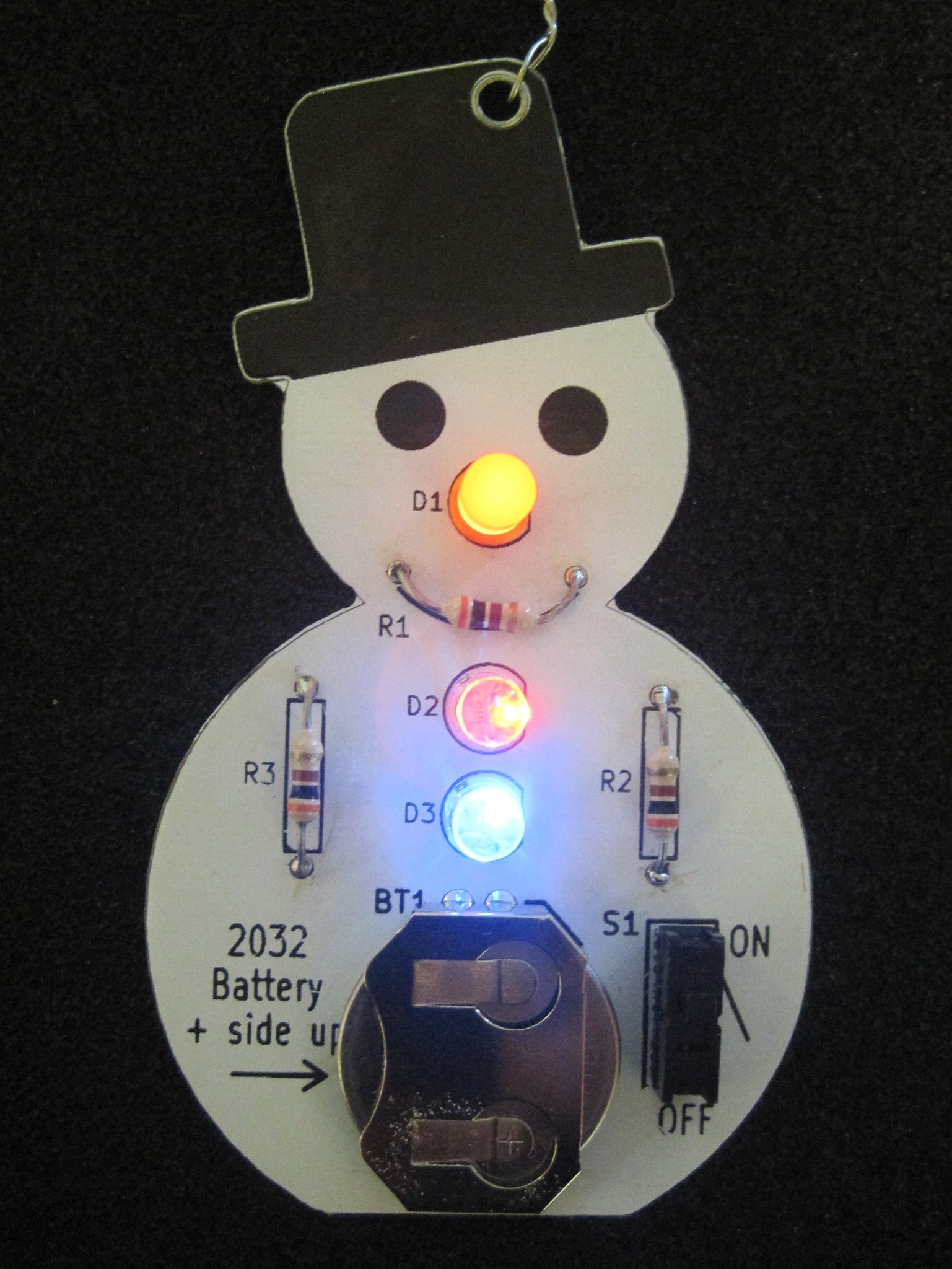

Step 10: Turn on the switch and watch the LEDs flash.
