Ghost Kit Build Instructions

Ghost Kit Product Page

Step 1 – Check the parts included with the kit Step 1

Step 2 – Install the battery holder with the opening to the left Step 2

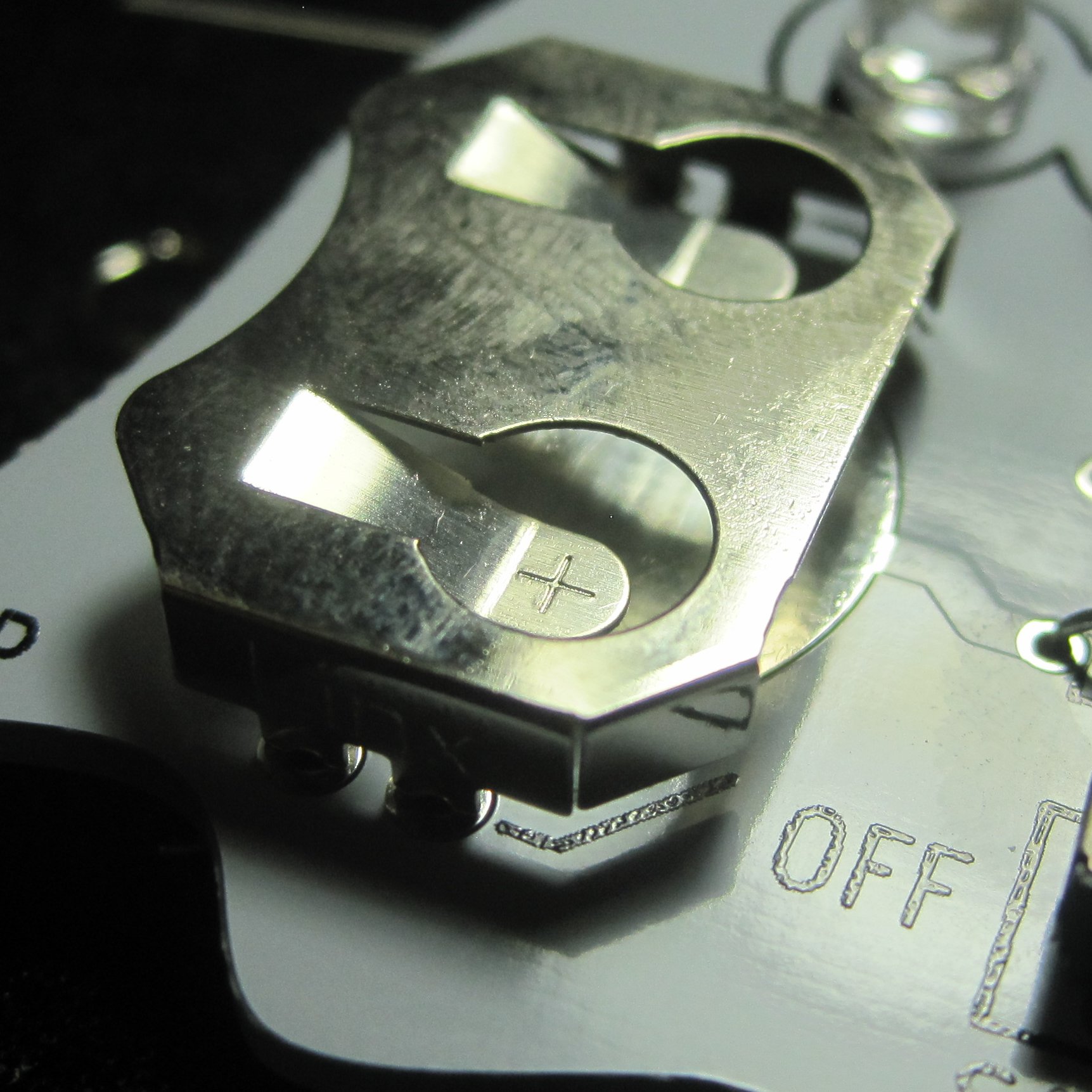

Step 3 – Check battery holder orientation Step 3

Step 4 – Install LEDs D1 and D2 with the longer lead to the positive (+) side Step 4

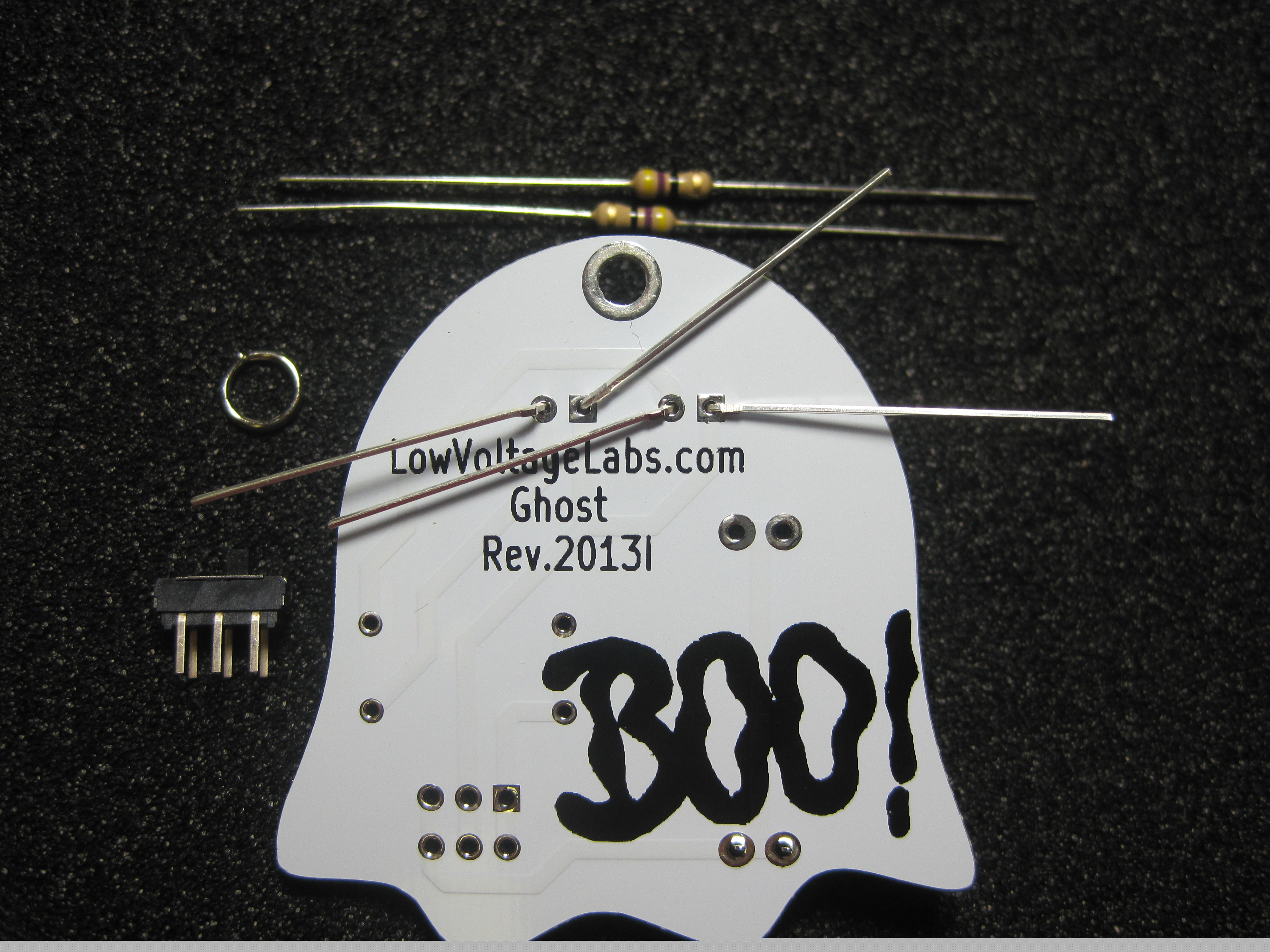

Step 5 – Fold the leads of the parts over as you install them to hold them in place Step 5

Step 6 – Install the resistors R1 and R2 Step 6

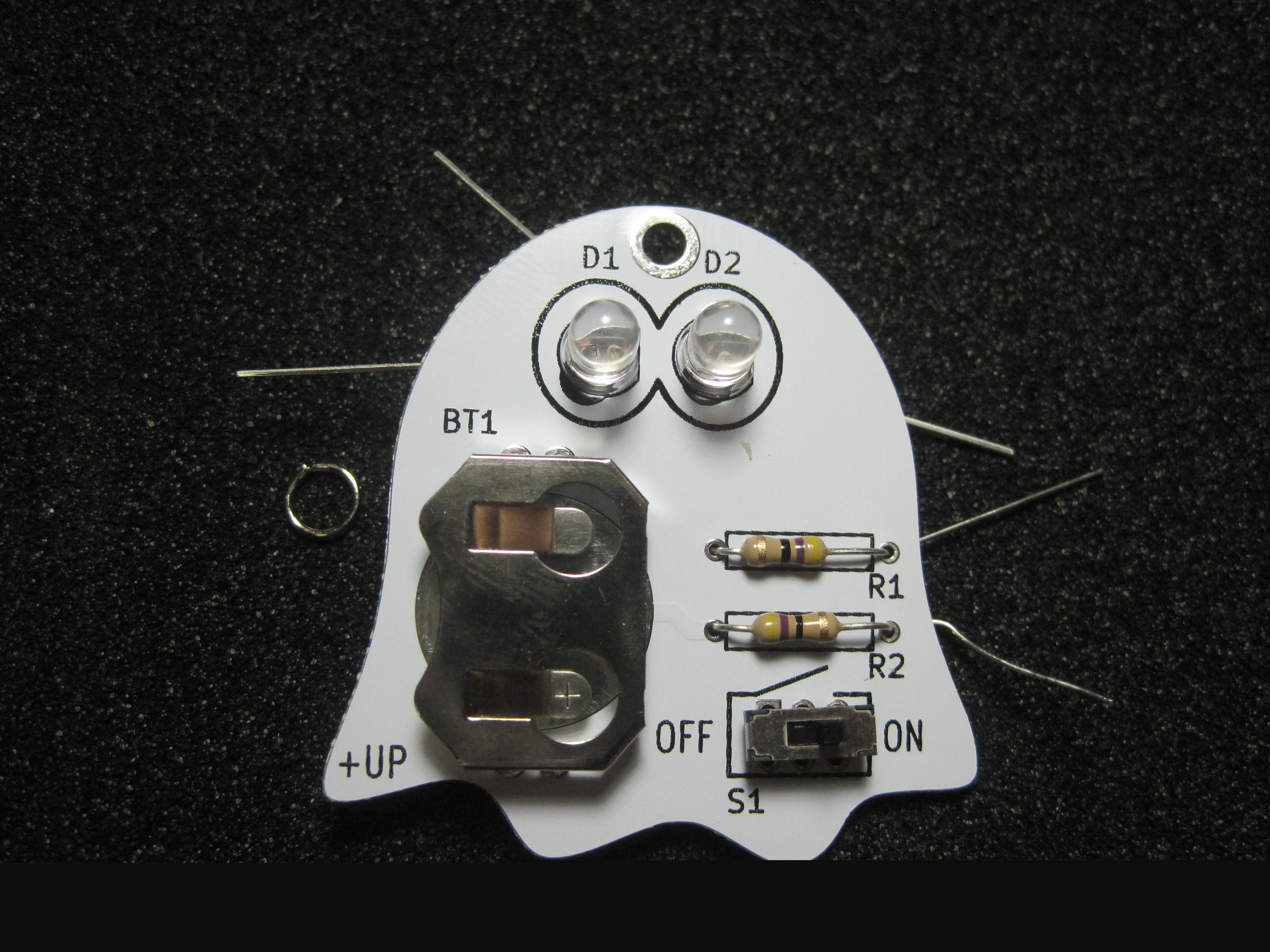

Step 7 – Install the switch S1 Step 7

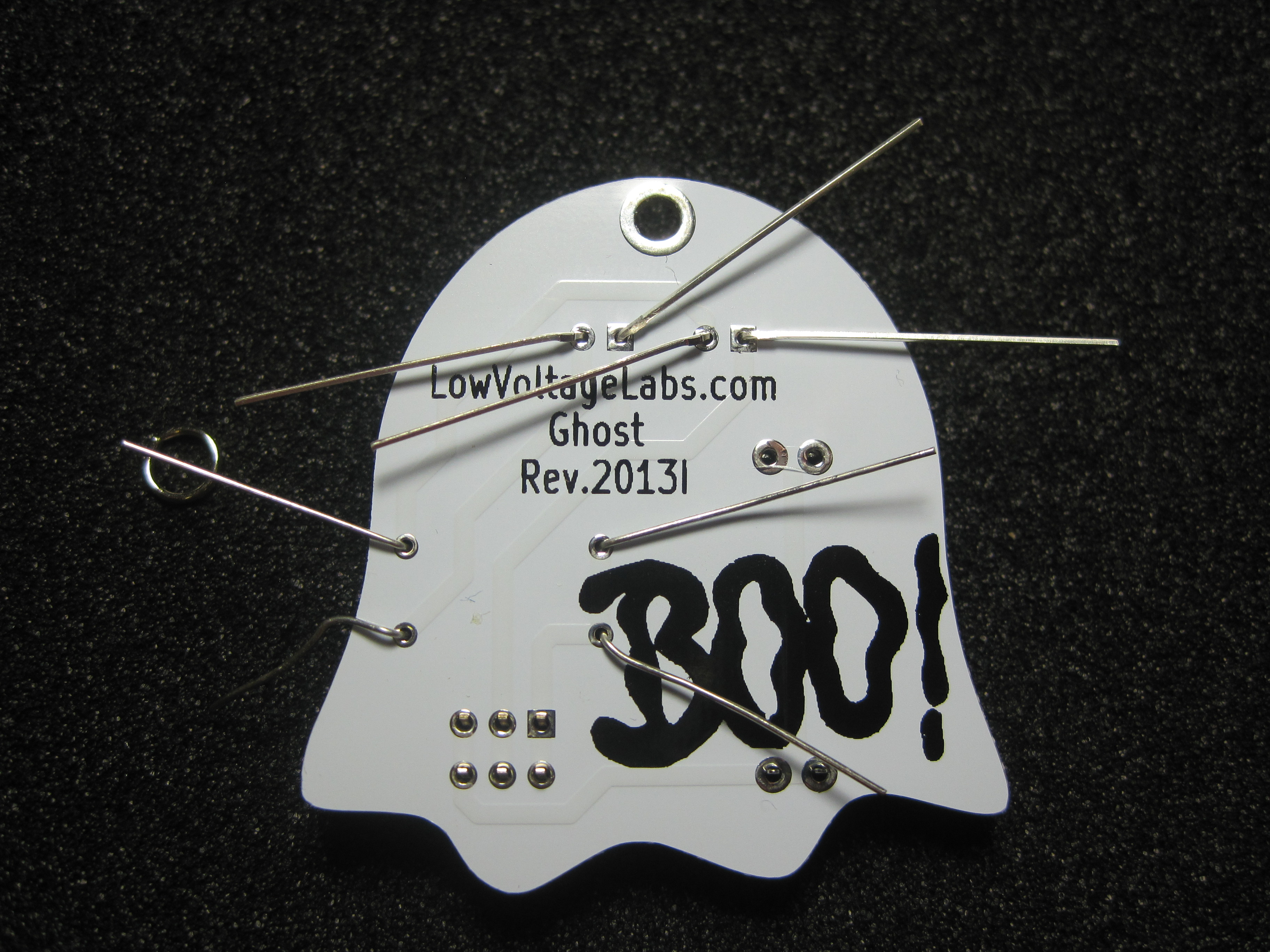

Step 8 – Flip over the ghost and solder the parts Step 8

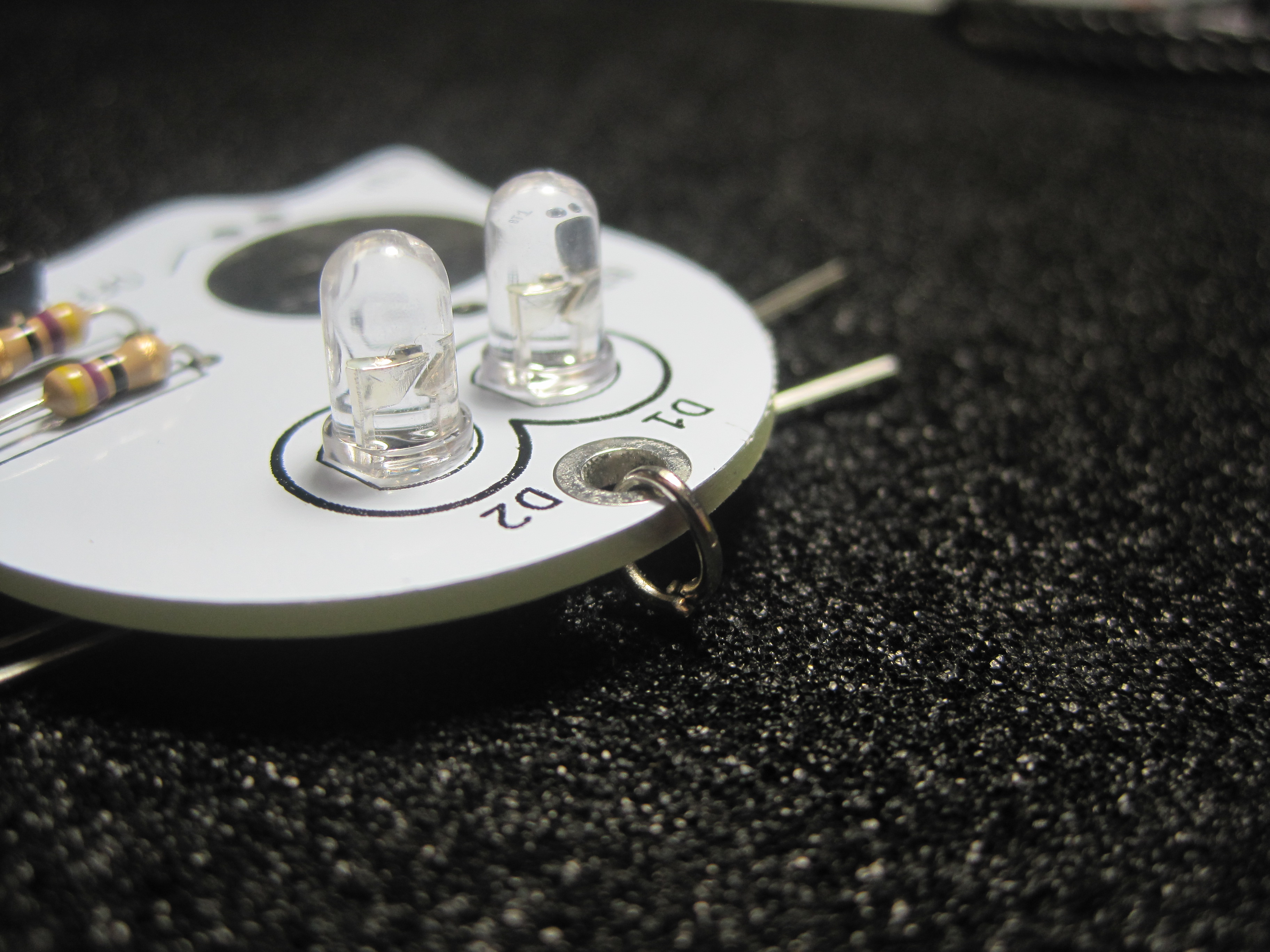

Step 9 – Install the ring to the top of the ghost Step 9

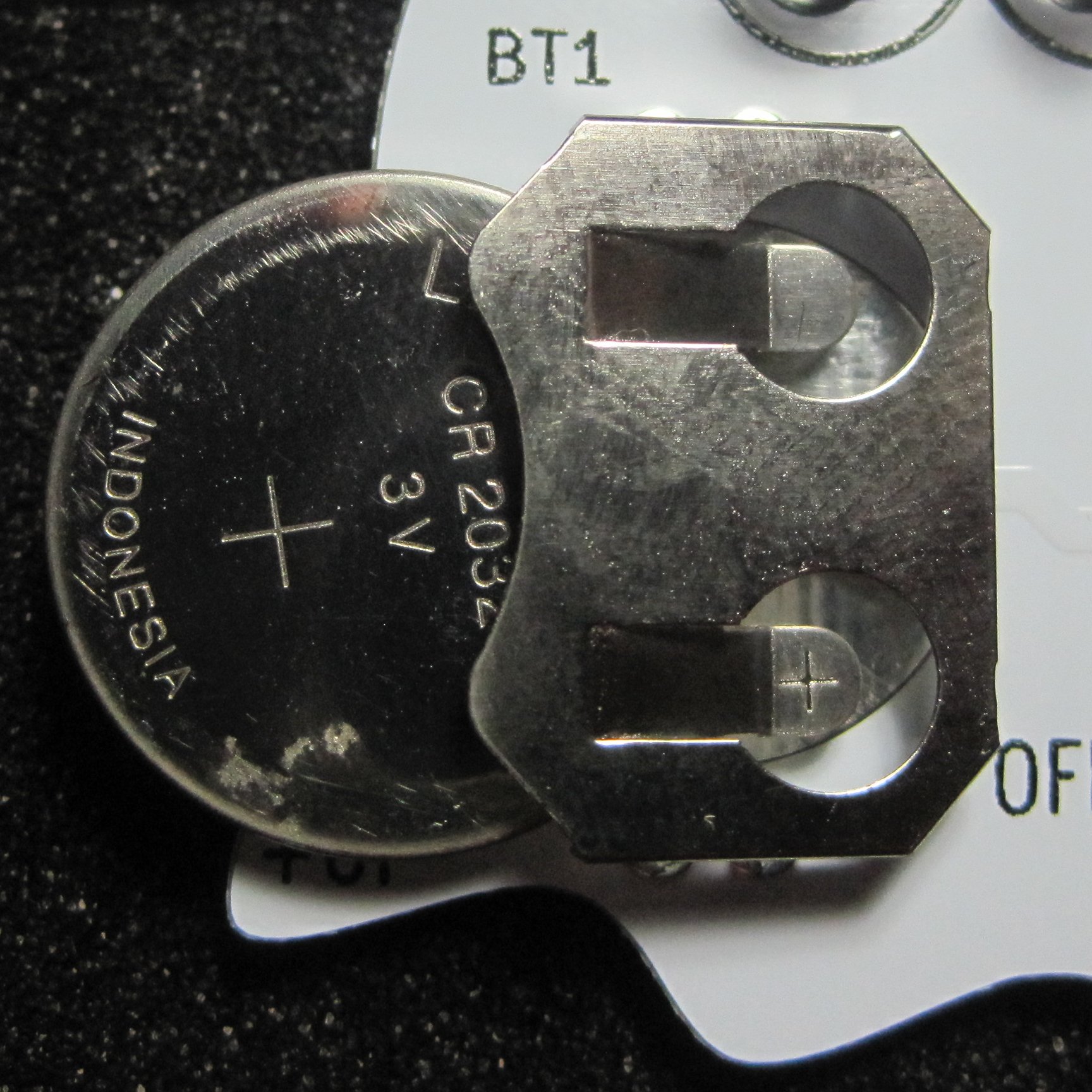

Step 10 – Install a 2032 battery with the positive side up Step 10

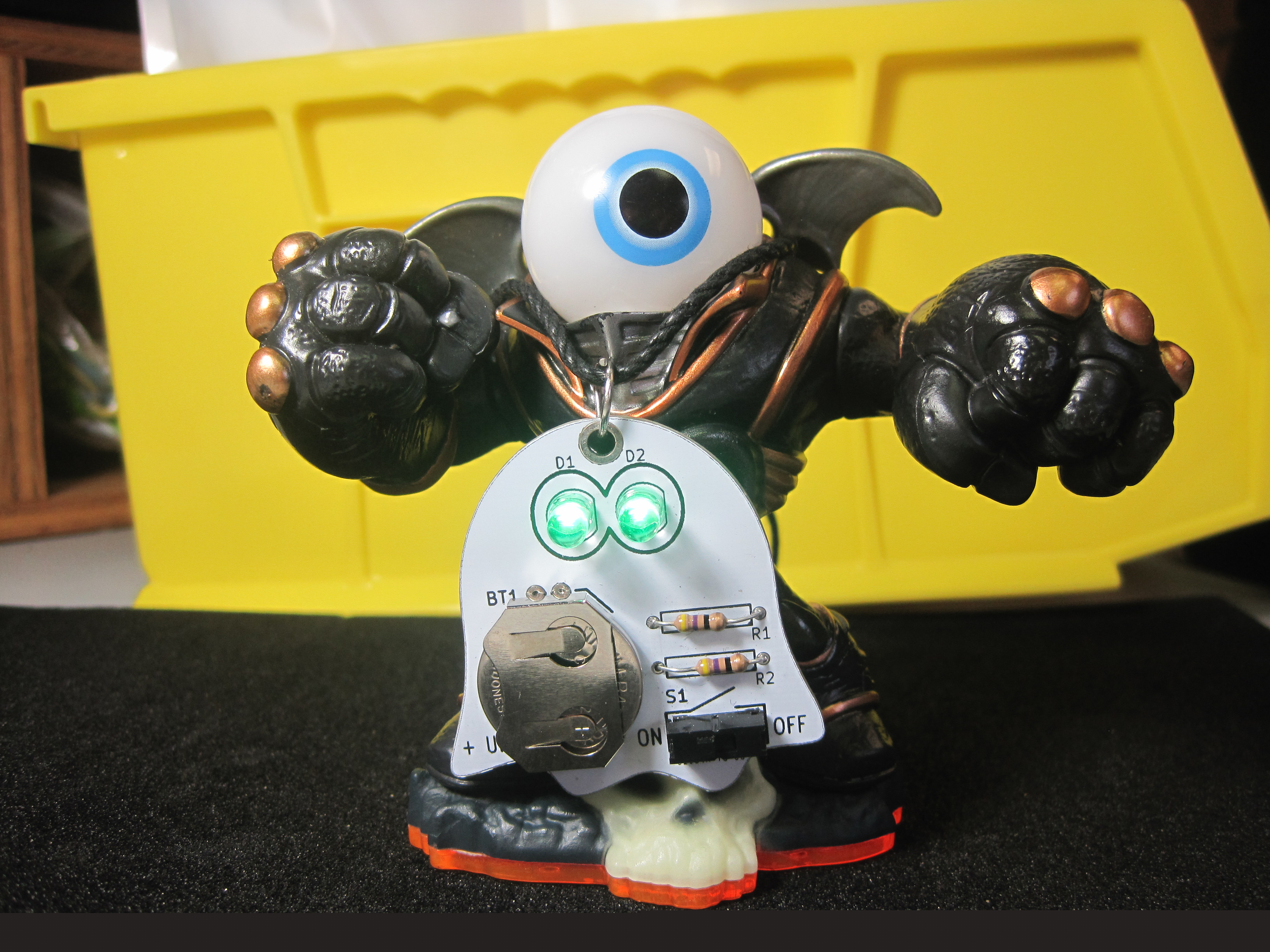

Step 11 – Turn on the switch and watch the green LEDs flash Step 11
